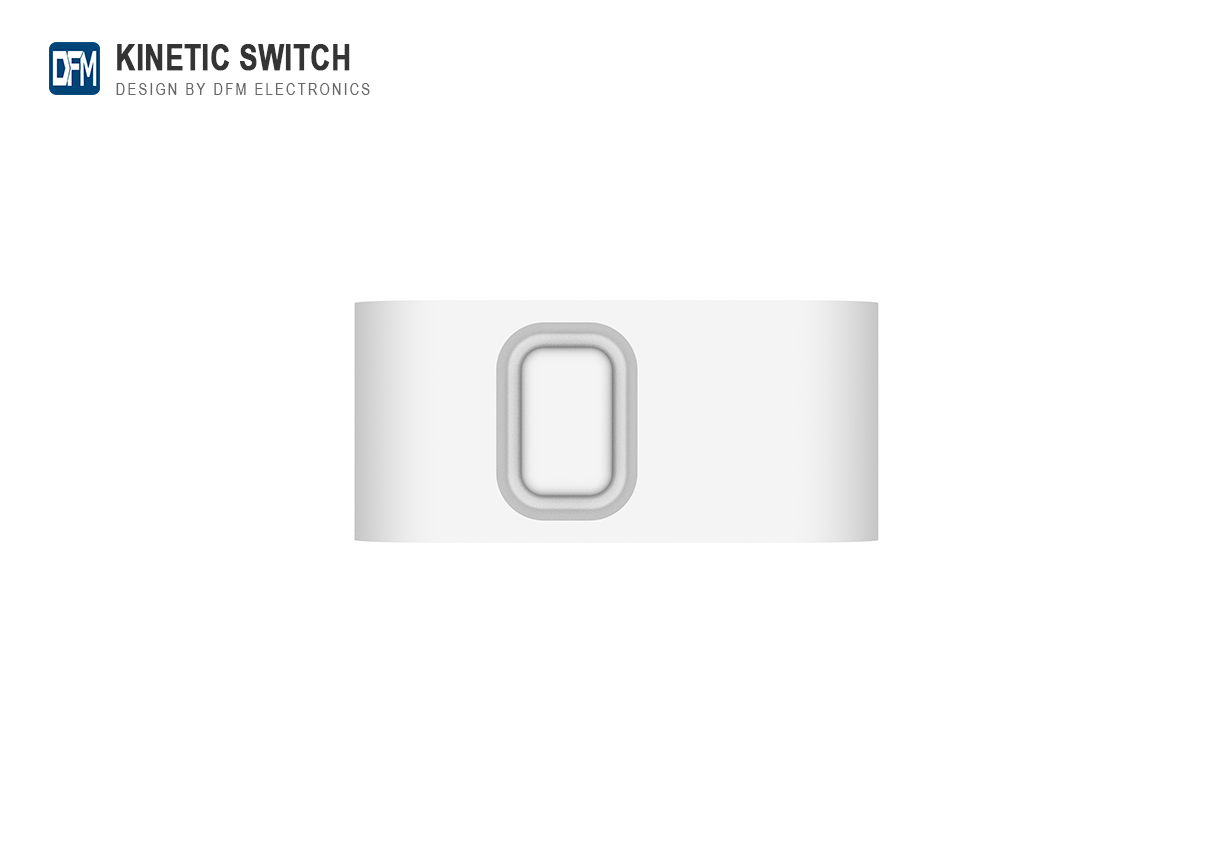

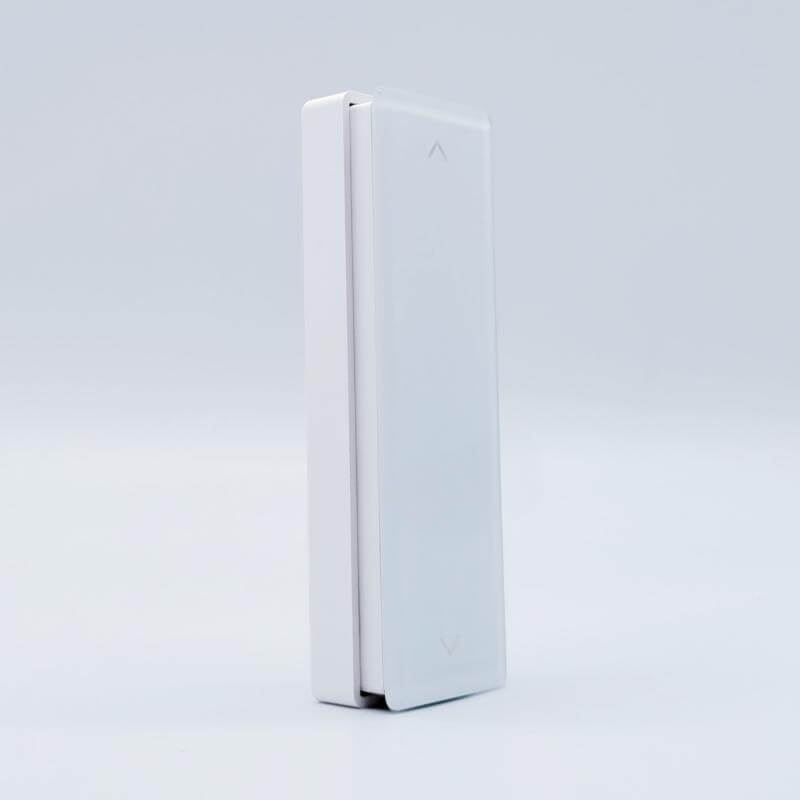

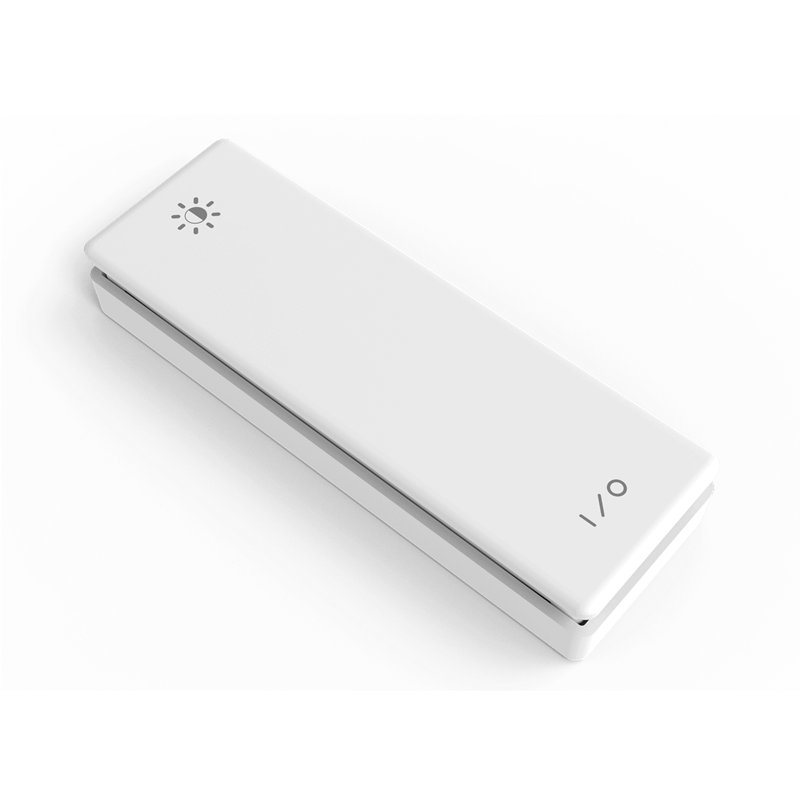

Keyboard switch has the feature of compaibilty and expansion. It can extend to combitation 4/6/8 keys or more. Paired with receiver and smart system, it can support dimming, remote control and smart voice control. Keyboard equipted with IP65. there are options of enforced glass and PC material for you.
|
2.1 Product parameters |
|||
|
S/N |
Performance parameters |
Parameter |
Notes |
|
1 |
Switch type |
Rebound reciprocating work |
|
|
2 |
Power mode |
Energy harvesting to generate electricity |
|
|
3 |
Decoding method |
OOK |
Can be adjusted according to safety regulations and customer requirements |
|
4 |
Operating frequency |
433MHZ |
|
|
5 |
Transmitting frequency |
+6DBM~13DBM |
|
|
6 |
Control distance |
20m [ indoor ]80M [ outdoor ] |
|
|
7 |
Protection level |
IP65 |
|
|
8 |
Number of keypad |
2 keys |
Free combination |
|
9 |
Mode of use |
Paired with a DFM receiver or receiving module |
|
|
10 |
Shell material |
PC fire rating V 0 |
H2P |
|
Glass panel + PC fire rating V0 |
The H2G panel is glass. |
||
|
11 |
Product size L * W * H |
86*29*14.5MM |
|
|
12 |
Product weight |
38g |
|
|
13 |
Packing size L * W * H |
11.5*6*2.5CM |
|
|
14 |
Outer box size L * W * H |
30*30*25 |
|
|
15 |
Outer box weight G. W |
6.7KG/(100PCS) |
Single Pack |
|
16 |
Certification |
CE/ROHS/UKCA |
|
|
17 |
Switch press life |
50000 times |
|
|
18 |
Product color |
White (WH) / black (BL) / champagne gold (CP) / gray (GY) |
All colors except white need to be painted. |
① The receiver connects the load and connects to the AC100-240V power and presses the key for 3-4 seconds until the indicator flashes (2 flashes per second)
② Press the wireless kinetic energy switch to be paired
③ When the receiver needs to add switches, repeat the above action, and the receiver can store up to 10 switch pairing information.
This is battery free wireless kinetic switch. It needs no battery or charging, no external power source. It can be placed anywhere to control your lighting fixture.
1.pressing the switch generates mechanical energy.
2.There is a little mechanical generator built inside.
3.Mechanical energy is converted to electrical energy by the generator.
4.Electrical energy powers the wireless signal.
5.Wireless signal output.
6.The receiver get the signal and control the lighting fixture of on/off
3.What is working frequency?
Working frequency is 433MHZ
Control distance covers 20-30m. Normally, the signal can cross 2-3walls when you use indoor. However, it can cover 100m if you use outdoor.
100,000 pressing times. The kinetic device inside actually runs over 30 years if we calculate into years.
RF433 type is 0.3W. WIFI 2.4G type is 0.7W
Company Info
DFM,as a professional kinetic switch manufacturer and industrial solution supplier, has 68 global invention patents. A team of more than 10 professional D&R technicians ensures the stable quality and advanced technology of products. Our prodcution capacity has100,000pcs/month. Professional technology and production lead to good products and sevices. We provide a range of various wireless kinetic switches and receivers, other smart home wireless solutions to customers and also support ODM and OEM according to your requisition.
