Elegant and simple design The smooth and clear surface is processed by a special technology S12 Supports IP67 waterproof, paired with a receiver and smart system Support dimming, remote control, and smart voice control. This technology combines energy harvesting and wireless intelligent control. The S12 slim series products are inspired by "slim", with "thin" as the design core, abandoning the traditional heavy shape, with elegant curves and rounded corners.
|
2.1 Product parameters |
|||
|
S/N |
Performance parameters |
Parameter |
Note |
|
1 |
Switch type |
Rebound reciprocating work |
|
|
2 |
Power mode |
Energy harvesting to generate electricity |
|
|
3 |
Decoding method |
OOK |
|
|
4 |
Operating frequency |
433MHZ |
|
|
5 |
Transmitting frequency |
+6DBM~13DBM |
|
|
6 |
Control distance |
20m [ indoor ]80M [ outdoor ] |
|
|
7 |
Protection level |
IP42 |
S111/S112/S113/S114 |
|
IP67 |
SP111/SP112/SP113/S12 |
||
|
8 |
Number of keypad |
1-3 key |
|
|
9 |
Mode of use |
Paired with a DFM receiver or receiving module |
|
|
10 |
Shell material |
PC fire rating V0 |
|
|
11 |
Product size L * W * H |
86*86*15.8mm |
|
|
12 |
Product weight |
72g |
|
|
13 |
Packing size L * W * H |
115*120*25mm |
|
|
14 |
Outer box size L * W * H |
250*250*250 mm |
|
|
15 |
Outer box weight G. W |
5KG/(40PCS) |
Single Pack |
|
16 |
Certification |
CE/ROHS/UKCA |
|
|
17 |
Switch press life |
50000 times |
|
|
18 |
Product color |
White (WH) / black (BL) / gray (GY) |
All colors except white need to be painted. |
① The receiver connects the load and connects to the AC100-240V power and presses the key for 3-4 seconds until the indicator flashes (2 flashes per second)
② Press the wireless kinetic energy switch to be paired
③ When the receiver needs to add switches, repeat the above action, and the receiver can store up to 10 switch pairing information.
④ One key, two keys, three keys, and four keys are matched in the same way.
This is battery battery-free wireless kinetic switch. It needs no battery or charging, no external power source. It can be placed anywhere to control your lighting fixture.
1. pressing the switch generates mechanical energy.

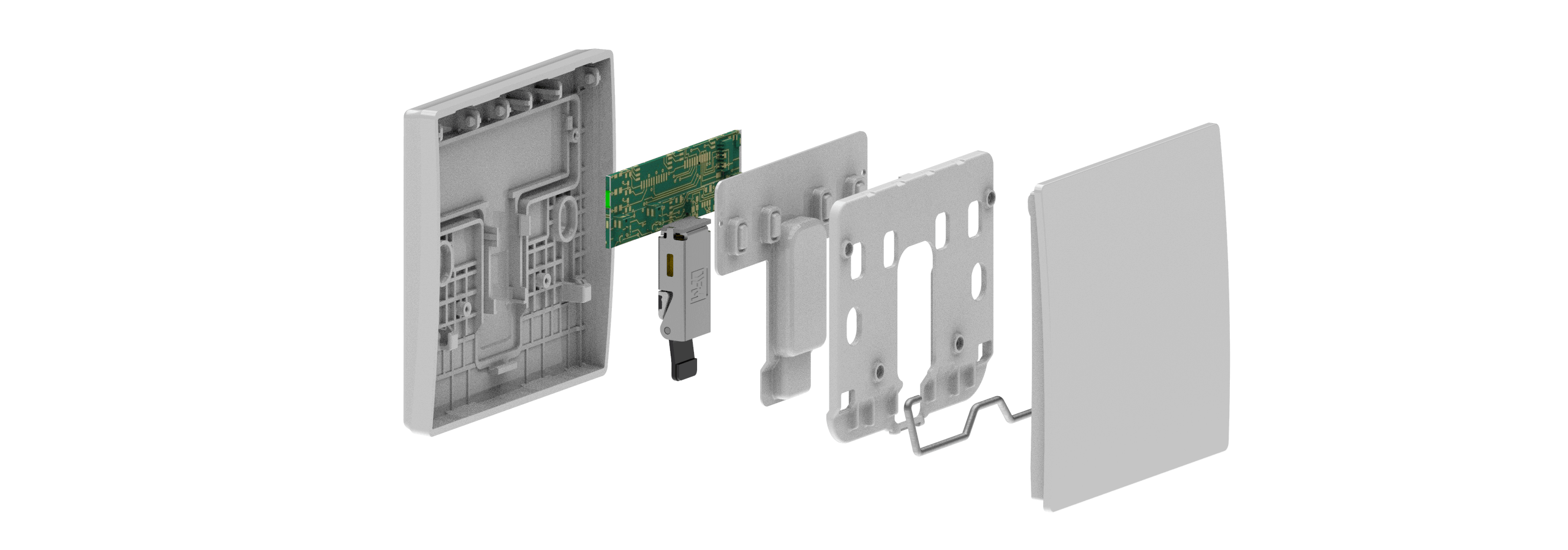

2. There is a little mechanical generator built inside.
3. Mechanical energy is converted to electrical energy by the generator.
4. Electrical energy powers the wireless signal.
5. Wireless signal output.
6. The receiver gets the signal and controls the lighting fixture of on/off
The working frequency is 433MHZ
Control distance covers 20-30m. Normally, the signal can cross 2-3 walls when you use it indoors. However, it can cover 100m if you use it outdoors.
100,000 pressing times. The kinetic device inside actually runs over 30 years if we calculate it into years.
RF433 type is 0.3W. WIFI 2.4G type is 0.7W
DFM, as a professional kinetic switch manufacturer and industrial solution supplier, has 68 global invention patents. A team of more than 10 professional D&R technicians ensures the stable quality and advanced technology of products. Our production capacity is 100,000pcs/month. Professional technology and production lead to good products and services. We provide a range of various wireless kinetic switches and receivers, and other smart home wireless solutions to customers and also support ODM and OEM according to your requisition.
