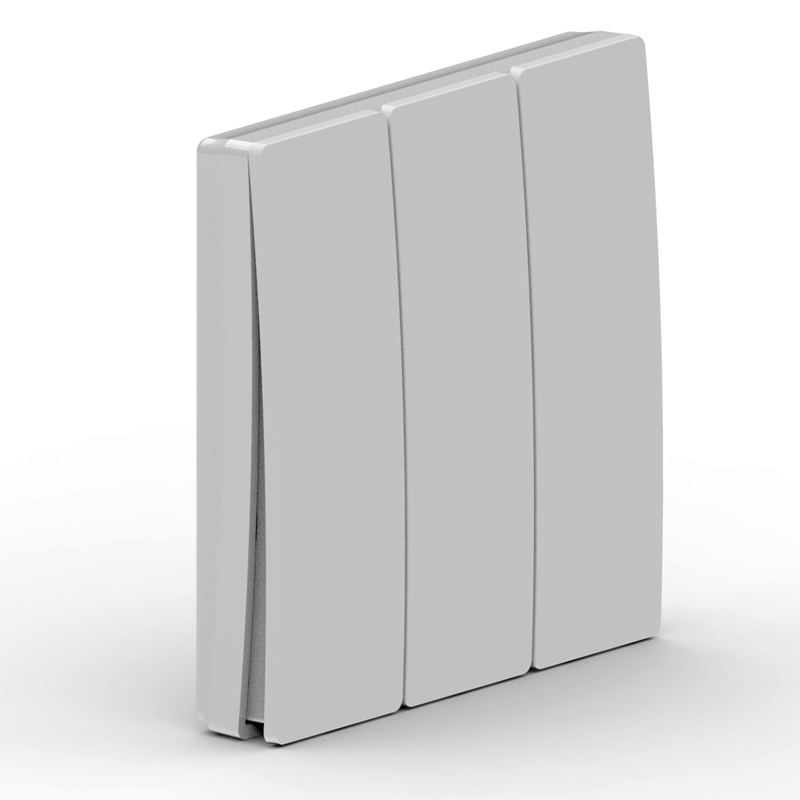

Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch
Type 86 IP65 Waterproof Self-Resetting Kinetic Switch

Type 86 IP65 Waterproof Self-Resetting Kinetic Switch

Product Series: S11PRO
Working type: reset switch
Working frequency: 433MHZ
Number of keys: 1-4 keys
Color: white/black/gold/grey (support customer customization)
Distance: 30 meters (indoor), 80 meters (outdoor)
Waterproof grade: IP65
Executive standard: ETSI EN 300220-1 V3.1.1(2017-02):EN 60669-1:2018
Switch type: Rebound reciprocating work
WorkHzing temperature: -10°C~+55°C
Control distance: 20m (indoor) 80m outdoor
Product size: 86*86*15.2mm
Produt Details

按键数量

开关类型

电源模式

六键

双侧回弹式开关

无线动能发电

产品尺寸

信号频率

工作温度

L86*W86*H15mm

433MHZ

-20°℃~+55℃

控制距离

产品特色

安装方式

室外:80m 室内:25m

场景、调光、窗帘开关

螺丝固定或双面胶粘贴

按键数量

开关类型

电源模式

六键

双侧回弹式开关

无线动能发电

产品尺寸

信号频率

工作温度

L86*W86*H15mm

433MHZ

-20°℃~+55℃

按键数量

开关类型

电源模式

六键

双侧回弹式开关

无线动能发电



Product details



Elegant and simple design The smooth and clear surface is processed by a special technology S11 PRO Supports IP65 waterproof, paired with receiver and smart system Support dimming, remote control, and smart voice control. This technology combines energy harvesting and wireless intelligent control. The switch converts mechanical energy into electrical energy to power itself.



Wireless Kinetic SwitchProduct specification











2.1 Product parameters

S/N

Performance parameters

Parameter

Note

1

Switch type

Rebound reciprocating work



2

Power mode

Energy harvesting to generate electricity



3

Decoding method

OOK



4

Operating frequency

433MHZ



5

Transmitting frequency

+6DBM~13DBM



6

Control distance

20m [ indoor ]80M [ outdoor ]



7

Protection level

IP42

S111/S112/S113/S114

IP67

SP111/SP112/SP113

8

Number of keypad

1-4 key



9

Mode of use

Paired with a DFM receiver or receiving module



10

Shell material

PC fire rating V0



11

Product size L * W * H

86*86*15.8mm



12

Product weight

82g



13

Packing size L * W * H

115*120*25mm



14

Outer box size L * W * H

250*250*250 mm



15

Outer box weight G. W

5KG/(40PCS)

Single Pack

16

Certification

CE/ROHS/UKCA



17

Switch press life

50000 times



18

Product color

White (WH) / black (BL) / champagne gold (CP) / gray (GY)

All colors except white need to be painted.

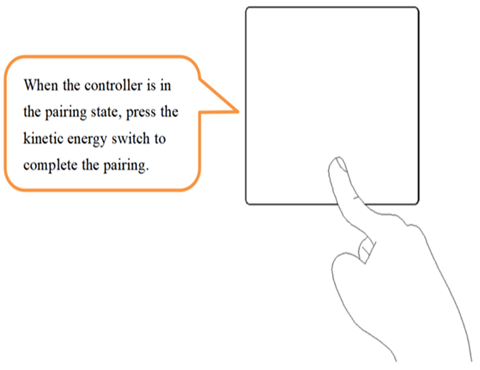

Operating steps

① The receiver connects the load and connects to the AC100-240V power and presses the key for 3-4 seconds until the indicator flashes (2 flashes per second)

② Press the wireless kinetic energy switch to be paired

③ When the receiver needs to add switches, repeat the above action, and the receiver can store up to 10 switch pairing information.

④ One key, two keys, three keys, and four keys are matched in the same way.



Wireless Kinetic Switch





FAQ

1. What is this?

This is battery battery-free wireless kinetic switch. It needs no battery or charging, and no external power source. It can be placed anywhere to control your lighting fixture.

2. How does it work?

1. Pressing the switch generates mechanical energy.

2. There is a little mechanical generator built inside.

3. Mechanical energy is converted to electrical energy by the generator.

4. Electrical energy powers the wireless signal.

5. Wireless signal output.

6. The receiver gets the signal and controls the lighting fixture of on/off

wireless kinetic switch

3. What is working frequency?

The working frequency is 433MHZ

4. How long will it control?

Control distance covers 20-30m. Normally, the signal can cross 2-3 walls when you use it indoors. However, it can cover 100m if you use it outdoors.

5. What is lifespan?

100,000 pressing times. The kinetic device inside actually runs over 30 years if we calculate it into years.

6. What is stand-by power?

RF433 type is 0.3W. WIFI 2.4G type is 0.7W
