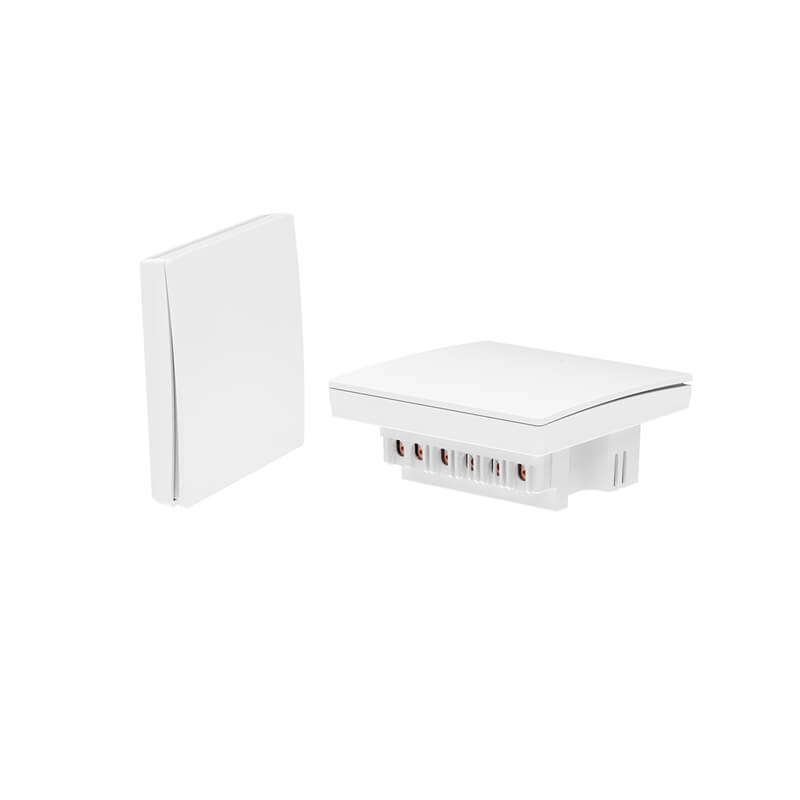

SS11 Smart switch (also used independantly) can work with S11 kinetic switch to support double control, multi-control, remote control and smart voice control. SS11 is a pefect solution of double control to replace traditional switch.
|
2.1 Product parameters |
|||
|
S/N |
Performance parameters |
Parameter |
Note |
|
1 |
Switch type |
Rebound reciprocating work |
|
|
2 |
Power mode |
Energy harvesting to generate electricity |
|
|
3 |
Decoding method |
OOK |
|
|
4 |
Operating frequency |
433MHZ |
|
|
5 |
Transmitting frequency |
+6DBM~13DBM |
|
|
6 |
Control distance |
20m [ indoor ]80M [ outdoor ] |
|
|
7 |
Protection level |
IP42 |
S111/S112/S113/S114 |
|
IP67 |
SP111/SP112/SP113 |
||
|
8 |
Number of keypad |
1-4 key |
|
|
9 |
Mode of use |
Paired with a DFM receiver or receiving module |
|
|
10 |
Shell material |
PC fire rating V0 |
|
|
11 |
Product size L * W * H |
86*86*15.8mm |
|
|
12 |
Product weight |
82g |
|
|
13 |
Packing size L * W * H |
115*120*25mm |
|
|
14 |
Outer box size L * W * H |
250*250*250 mm |
|
|
15 |
Outer box weight G. W |
5KG/(40PCS) |
Single Pack |
|
16 |
Certification |
CE/ROHS/UKCA |
|
|
17 |
Switch press life |
50000 times |
|
|
18 |
Product color |
White (WH) / black (BL) / champagne gold (CP) / gray (GY) |
All colors except white need to be painted. |
①The receiver connects the load and connects to the AC100-240V power and presses the key for 3-4 seconds until the indicator flashes (2 flashes per second)
②Press the wireless kinetic energy switch to be paired
③When the receiver needs to add switches, repeat the above action, and the receiver can store up to 10 switch pairing information.
④One key, two keys, three keys and four keys are matched in the same way.
DFM,as a professional kinetic switch manufacturer and industrial solution supplier, has 68 global invention patents. A team of more than 10 professional D&R technicians ensures the stable quality and advanced technology of products. Our prodcution capacity has100,000pcs/month. Professional technology and production lead to good products and sevices. We provide a range of various wireless kinetic switches and receivers, other smart home wireless solutions to customers and also support ODM and OEM according to your requisition.
