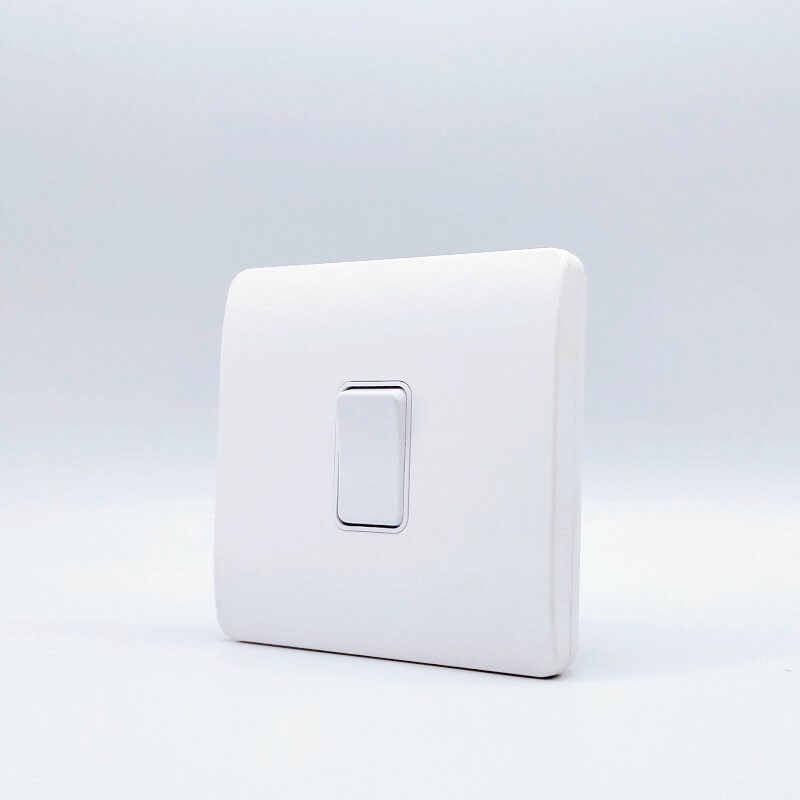

Support super compatibility and expansion, compatible with many countries of the basis of switch.
|
2.1 Product parameters |
|||
|
S/N |
Performance parameters |
Parameter |
Notes |
|
1 |
Switch type |
Rebound reciprocating work |
|
|
2 |
Power mode |
Energy harvesting to generate electricity |
|
|
3 |
Decoding method |
OOK |
|
|
4 |
Operating frequency |
433MHZ |
|
|
5 |
Transmitting frequency |
+6DBM~13DBM |
|
|
6 |
Control distance |
20m [ indoor ]80M [ outdoor ] |
|
|
7 |
Protection level |
IP42 |
|
|
8 |
Number of keypad |
1-2 keys |
|
|
9 |
Mode of use |
Paired with a DFM receiver or receiving module |
|
|
10 |
Shell material |
PC fire rating V 0 |
|
|
11 |
Product size L * W * H |
56*25*13.5MM |
|
|
12 |
Product weight |
22g |
|
|
13 |
Packing size L * W * H |
Xx CM |
|
|
14 |
Outer box size L * W * H |
19.5*10.5*13.5 CM（40PCS) |
Single Pack |
|
15 |
Outer box weight G. W |
Xx Kg |
|
|
16 |
Certification |
CE/ROHS/UKCA |
|
|
17 |
Switch press life |
50,000 times |
|
|
18 |
Product color |
White (WH)/black (BL) |
All colors except white need to be painted. |
① The receiver connects the load and connects to the AC100-240V power and presses the key for 3-4 seconds until the indicator flashes (2 flashes per second)
② When the receiver needs to add a switch, the above action is repeated, and the receiver can store up to 10 switch pairs;
③ Single-key, double-key, three-key, four-key the same way on the code.
DFM, as a professional kinetic switch manufacturer and industrial solution supplier, has 68 global invention patents. A team of more than 10 professional D&R technicians ensures the stable quality and advanced technology of products. Our production capacity 100,000pcs/month. Professional technology and production lead to good products and services. We provide a range of various wireless kinetic switches and receivers, and other smart home wireless solutions to customers and also support ODM and OEM according to your requisition.
