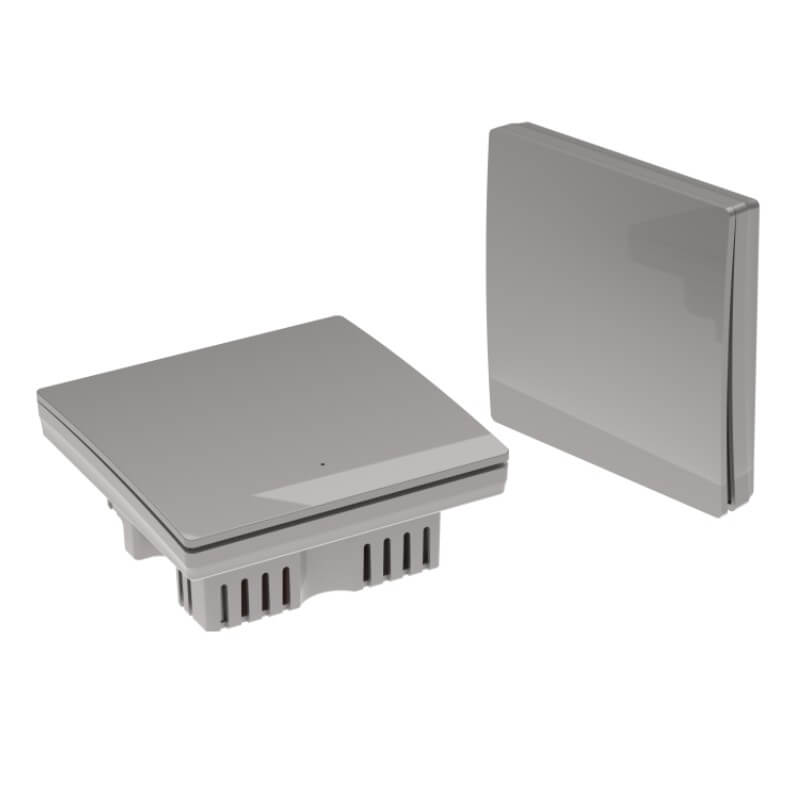

SS11 Smart switch (also used independently) can work with the S11 kinetic switch to support double control, multi-control, remote control, and smart voice control. SS11 is a perfect solution for double control to replace traditional switches.
|
2.1 Product parameters |
|||
|
S/N |
Performance parameters |
Parameter |
Note |
|
1 |
Switch type |
Rebound reciprocating work |
|
|
2 |
Power mode |
Energy harvesting to generate electricity |
|
|
3 |
Decoding methods |
K |
|
|
4 |
Operating frequency |
433MHZ |
|
|
5 |
Transmitting frequency |
+6DBM~13DBM |
|
|
6 |
Control distance |
0m [ indoor ]80M [ outdoor ] |
|
|
7 |
Protection level |
IP42 |
S111/S112/S113/S114 |
|
IP67 |
SP111/SP112/SP113 |
||
|
8 |
Number of keypad |
1-4 key |
|
|
9 |
Mode of use |
Paired with a DFM receiver or receiving module |
|
|
10 |
Shell material PC |
C fire rating V0 |
|
|
11 |
Product size L * W * H |
86*86*15.8mm |
|
|
12 |
Product weight |
82g |
|
|
13 |
Packing size L * W * H |
115*120*25mm |
|
|
14 |
Outer box size L * W * H |
250*250*250 mm |
|
|
15 |
Outer box weight G. W |
5KG/(40PCS) |
Single Pack |
|
16 |
Certification |
CE/ROHS/UKCA |
|
|
17 |
Switch press life |
50000 times |
|
|
18 |
Product color |
White (WH) / black (BL) / champagne gold (CP) / gray (GY) |
All colors except white need to be painted. |
①The receiver connects the load and connects to the AC100-240V power and presses the key for 3-4 seconds until the indicator flashes (2 flashes per second)
②Press the wireless kinetic energy switch to be paired
When the receiver needs to add switches, repeat the above action, and the receiver can store up to 10 switch pairing information.
One key, two keys, three keys, and four keys are matched in the same way.
DFM, as a professional kinetic switch manufacturer and industrial solution supplier, has 68 global invention patents. A team of more than 10 professional D&R technicians ensures the stable quality and advanced technology of products. Our production capacity is 100,000pcs/month. Professional technology and production lead to good products and services. We provide a range of various wireless kinetic switches and receivers, and other smart home wireless solutions to customers and also support ODM and OEM according to your requisition.
