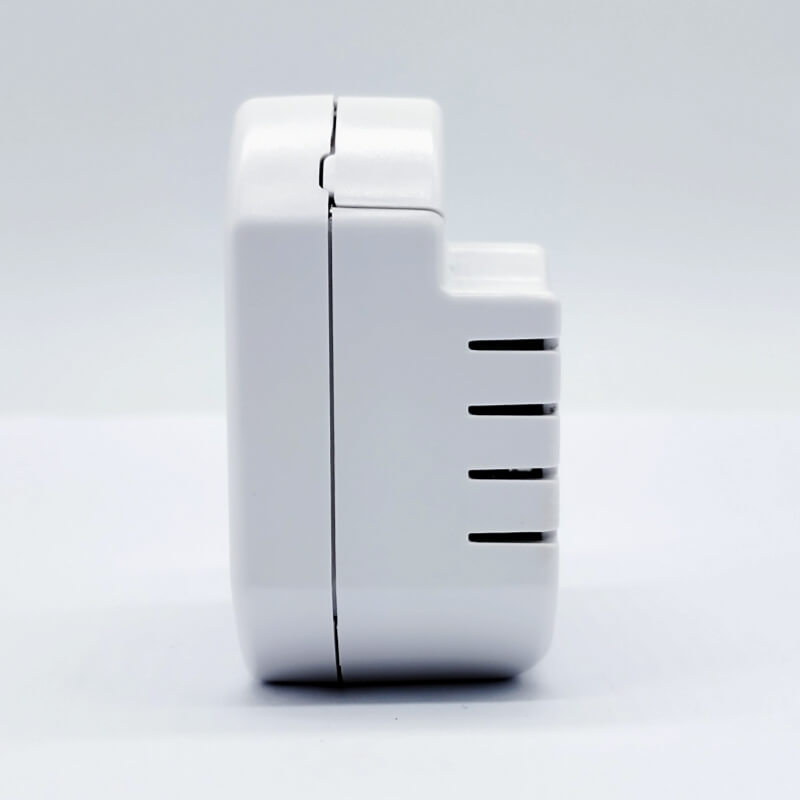

1. Product Pictures
2. Product specification
|
2.1 Product parameters |
|||
|
serial number |
sports event |
parameters |
note |
|
1 |
Input Voltage |
AC100～240V |
|
|
2 |
Input frequency |
50/60Hz |
|
|
3 |
Control power |
Single circuit 500W (resistive) 200W (LED) |
|
|
4 |
Standby power consumption |
< 0.2W |
Model K22R/K23R |
|
< 0.7W |
Other Models |
||
|
5 |
communication frequency |
RF433MHz |
K22R/K23R |
|
RF433MHz&WIFI2.4G+BLE(TUYA) |
K22W/K23W |
||
|
RF433MHZ&Zigbee(TUYA) |
K22Z/K23Z |
||
|
RF433MHZ&Mesh (TUYA) |
K22M/K23M |
||
|
6 |
control distance |
20m [indoor] 80M [outdoor] |
RF |
|
7 |
indicator light |
Red light indicates pairing and clearing codes, blue light indicates mating network |
|
|
9 |
Usage |
Pairing with DEFEMA Kinetic Energy Switches |
|
|
10 |
Shell material |
PC Fire rating V0 |
|
|
11 |
Product Size L*W*H(MM) |
52.5*52.5*28 |
|
|
12 |
Product weight(G) |
|
|
|
13 |
Product package size L*W*H(MM) |
|
|
3 Operational steps
3.1 Installation methods
Receiver Controller Wiring Diagram

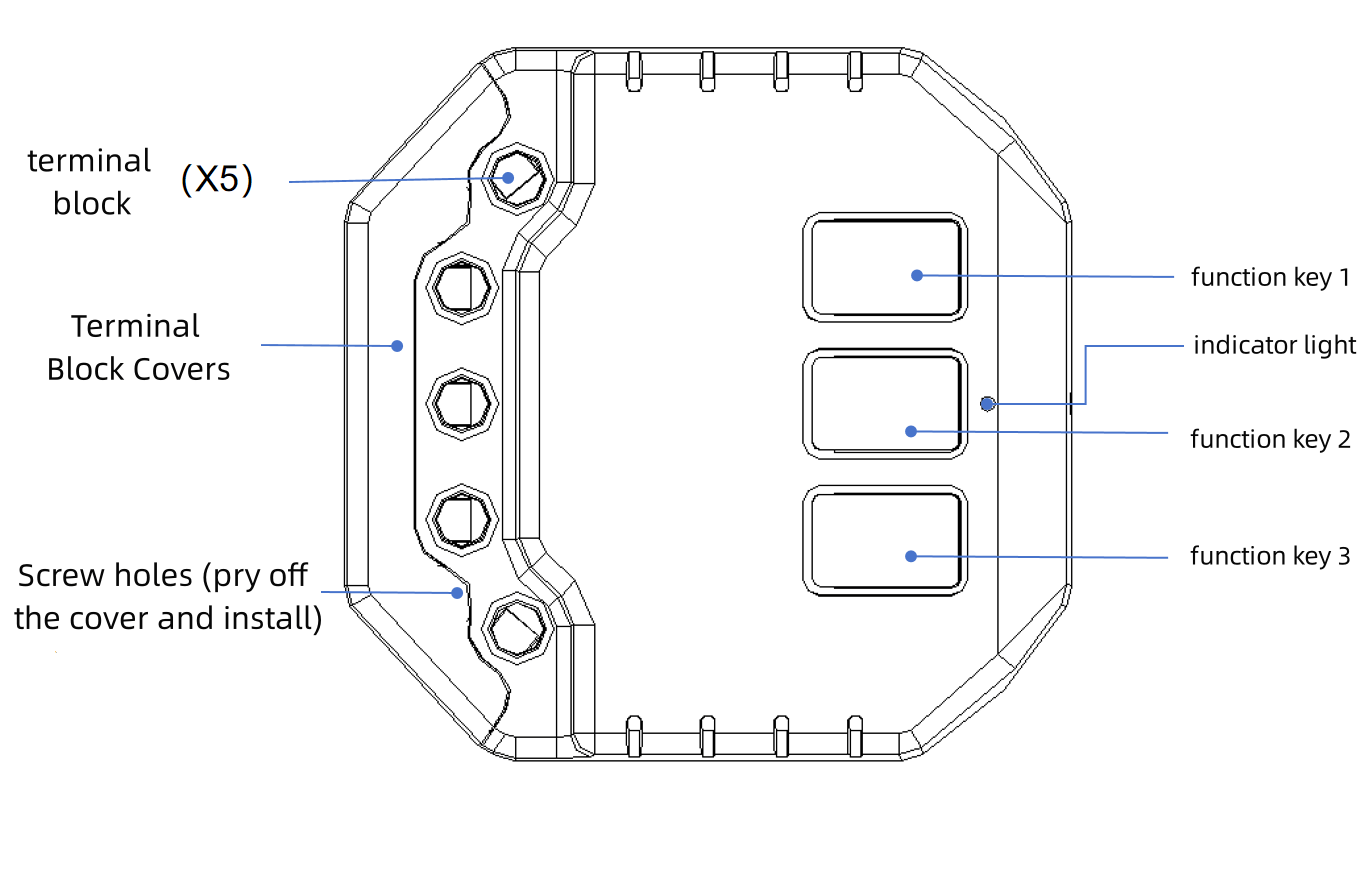

Receiver Controller Structure
Kinetic energy switch diagram
DFM, as a professional kinetic switch manufacturer and industrial solution supplier, has 68 global invention patents. A team of more than 10 professional D&R technicians ensures the stable quality and advanced technology of products. Our production capacity is 100,000pcs/month. Professional technology and production lead to good products and services. We provide a range of various wireless kinetic switches and receivers, and other smart home wireless solutions to customers and also support ODM and OEM according to your requisition.
